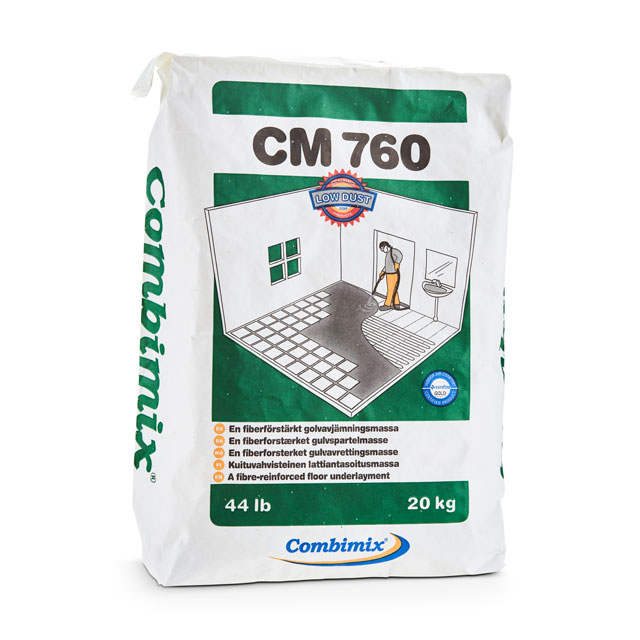

CM 760 Fibre

CM 760 Fibre is a pumpable, fibre-reinforced self-levelling underlayment.

The product is fibre reinforced, quick setting, self-drying and has a very good flow rate. The CM 760 is suitable for new construction, renovation and heated floor systems. The product is intended for indoor use on substrates of concrete, lightweight concrete, stone, ceramic tiles, homogenous PVC, wood and gypsum underlay. CM 760 is frost resistant and can be used outdoor on concrete substrates, under teils, except in salt environments.

Senden Sie alle Dateien

Alle Dateien herunterladen

info

Produktspezifikation

Technische Daten
add_circle
remove_circle

Die Freisetzung von Substanzen corrsive

CT

Druckfestigkeitsklasse

C30

Druckfestigkeit Durchschnitt

35 MPa

Biegezugfestigkeit Klasse

F7

Biegezugfestigkeit Durchschnitt

8 MPa

Feuerwiderstandsklasse

A1fl

RWFC

550

Die Haftung an der Oberfläche

B1.5

Dicke 1

5–50 mm

Stärke 2

6–20 mm on lightweight concrete

Körnung

< 2 mm

Materialverbrauch

1,7 kg/m²/mm

Gewicht (trocken)

1700 kg/m³

Wasserbedarf

3,6 l/20 kg

Fließrate

max 135 mm

Betriebstemperatur

10–25 °C

Mischzeit

3 min

Arbeitszeit

10–25 min

Abbindezeit

1–3 hrs

Abdeckbar (Fliesen)

12 hrs

Carpetable

1–3 days

pH-Wert

approx. 11

Wasserschaden resistent

Yes

Oberflächen Zu, 28 Tage (poliert, geladene Oberfläche)

> 1.5 MPa

Schwindung

0.03–0.05 %

TVOC 28 Tage

10 μg/(m2 h)

Verpackung
add_circle
remove_circle

76005

20 kg

info

Benutzen

Vorbehandlung
add_circle
remove_circle

The substrate should be clean and free of dust, cement skin, grease and other impurities that can prevent adhesion. Adhesion and surface strength of the substrate should be no less than 0.5 MPa. Always prime the underlying substrate with PP 600 and allow to dry before pouring. In terms of the primer forming a film, the temperature of the substrate must not fall below 10 °C. For best results, the ambient temperature in the work area should be between 10 and 25 °C. At higher or lower temperatures, the time for curing will shorten or extend. With the risk for cracks due to shrinkage or settings in the subfloor, a concrete surface should not be leveled within the first 28 days after casting. As a recommendation the RH in the concrete should have reached RH 95 % as the upper limit for pouring the CM 760. Use the Combimix form foam for edging. In order to avoid drainage pipes from getting clogged, always make sure the drains are properly sealed before pouring.

Vermischung
add_circle
remove_circle

Mix the dry powder with max 3.6 liters of water (max 18 %) per 20 kg bag. Mix with a drilling machine and a whisk, or a mixing pump intended for this purpose. The correct water mixture can be tested using a slump test with a cylinder with Ø 30 mm and a height of 50 mm on 300 x 300 mm plexiglas plate. With the correct water mixture, the spread should be max 135 mm. The slump test also checks that the material is well blended and that there is no separation.

Anwendung
add_circle
remove_circle

The mixed material is applied by hand, or pumped out onto the substrate in lengths. Each new ribbon is added to the old one as soon as possible so that the material can blend together and create an even surface. The width of the ribbons can be adjusted to the capacity of the mixing pump and the thickness of the covering. The material requires a light treatment with a toothed trowel to provide maximum smoothness.

Nachbehandlung und Härten
add_circle
remove_circle

You can easily shape or cut the semi- hardened self-leveling underlayment material before it fully dries. Always make sure that the material is sufficiently dry before it will be covered by a carpet or a foilsystem. The CM 760 may be covered by a carpet or a foilsystem after 1-3 days depending on the thickness. The guiding value assumes a curing temperature of approximately 20 °C, 50 % RH and proper air flow. Newly produced surfaces must be protected against wind, sun and rain.
