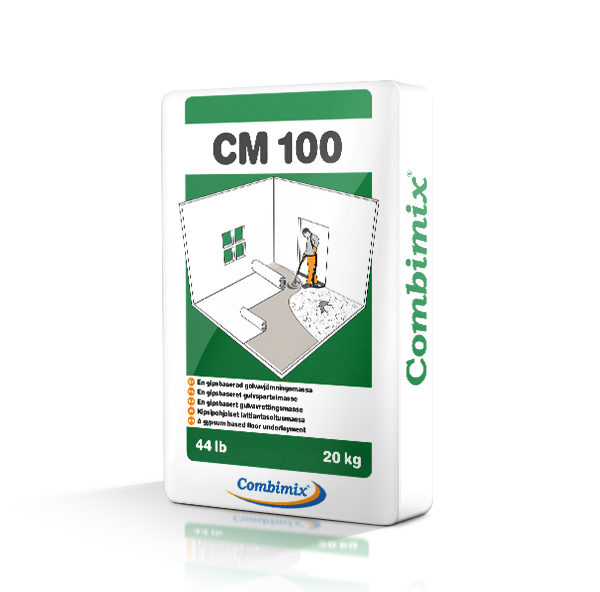

CM 100 Gypsos

CM 100 Gypsos is a pumpable, gypsum based self-levelling underlayment.

The product is suitable for new construction and renovation. The product is intended for indoor use on substrates of concrete, lightweight concrete, stone, ceramic tiles gypsum underlay, wood and homogenous PVC. The product is intended to be covered with a top layer, e.g. tiles, carpets or similar.

Send all files

Download all files

info

Product specification

Technical data
add_circle
remove_circle

Release of corrsive substances

CA (as per EN 13813)

Compressive strength class

C20 (as per EN 13813)

Compressive strength average

20 MPa (as per EN 13813)

Flexural strength class

F5 (as per EN 13813)

Flexural strength average

5 MPa (as per EN 13813)

Fire resistance class

A1fl (as per EN 13813)

RWFC

550 (as per EN 13813)

Thickness 1

5–50 mm

Thickness 2

6–20 mm on lightweight concrete

Grain size

< 2 mm

Material consumption

1,7 kg/m²/mm

Weight (dry state)

1700 kg/m³

Water requirements

3.8 l/20 kg

Flow rate

max 140 mm

Workplace temperature

10–25 °C

Mixing time

3 min

Working time

10–20 min

Final set

1–3 hrs

Coverable (tiles)

12 hrs

Carpetable

10 mm/week

pH

approx. 11

Water damage resistant

yes

Surface Tensile Bond Strength, 28 days (sanded, loaded surface)

> 1,5 MPa

Shrinkage

0–0,01 %

TVOC 28 days

< 10 μg/(m² h)

Packaging
add_circle
remove_circle

80005

20 kg

80003

1000 kg

info

Use

Pre-treatment
add_circle
remove_circle

The substrate should be clean and free of dust, cement skin, grease and other impurities that can prevent adhesion. Adhesion and surface strength of the substrate should be no less than 0.5 MPa. If the substrate is weaker than 0,5 MPa, a test should be executed. The test should be applied on 0,5x3,0 meters and evaluated after 3 days for any cracks. Contact Combimix for consultation. Always prime the underlying substrate with PP 600 and allow to dry before pouring. In terms of the primer forming a film and the curing of the self-leveling, the temperature of the substrate must not fall below 10 °C. For best results, the ambient temperature in the work area should be between 10 and 25 °C. At higher or lower temperatures, the time for curing will shorten or extend. With the risk for cracks due to shrinkage or settings in the subfloor, a concrete surface should not be leveled within the first 28 days after casting. As a recommendation the RH in the concrete should have reached RH 90 % as the upper limit for pouring the CM 100. Use the Combimix form foam for edging. In order to avoid drainage pipes from getting clogged, always make sure the drains are properly sealed before pouring.

Mixing
add_circle
remove_circle

Mix the dry powder with max 3.8 liters of water (max 19 %) per 20 kg bag. Mix with a drilling machine and a whisk, or a mixing pump intended for this purpose. The correct water mixture can be tested using a slump test with a cylinder with Ø 30 mm and a height of 50 mm on 300 x 300 mm plexiglas plate. With the correct water mixture, the spread should be max 140 mm. The slump test also checks that the material is well blended and that there is no separation.

Application
add_circle
remove_circle

The mixed material is applied by hand, or pumped out onto the substrate in lengths. Each new ribbon is added to the old one as soon as possible so that the material can blend together and create an even surface. The width of the ribbons can be adjusted to the capacity of the mixing pump and the thickness of the covering. The material requires a light treatment with a toothed trowel to provide maximum smoothness.

Post-treatment and curing
add_circle
remove_circle

You can easily shape or cut the semi-hardened self-leveling underlayment material before it fully dries. Always make sure that the material is sufficiently dry before it will be covered by a carpet or a foilsystem. The guided time for dehydration down to RH 95 % of the product is 10 mm per week. The guiding value assumes a curing temperature of approximately 20 °C, 50 % RH and proper air flow. Newly produced surfaces must be protected against wind, sun and rain.

Consumption calculator

CM 100 Gypsos

Consumption calculator
